Key Features
- Engine #1: 3,000 hours until OH
- Engine #2: 3,000 hours unil OH
- Equipped w/ Avance L3 WiFi
- U.S. Owned & Operated
Cabin
- Cabin Length
- 15.60 ft
- Cabin Height
- 4.75 ft
- Cabin Width
- 4.92 ft
- Passengers
- 7
- Cabin Zones
- 1
- Lavatory Locations
- Aft Fully Enclosed Lavatory with Belted Seat
- Galley Location
- Forward Cabin

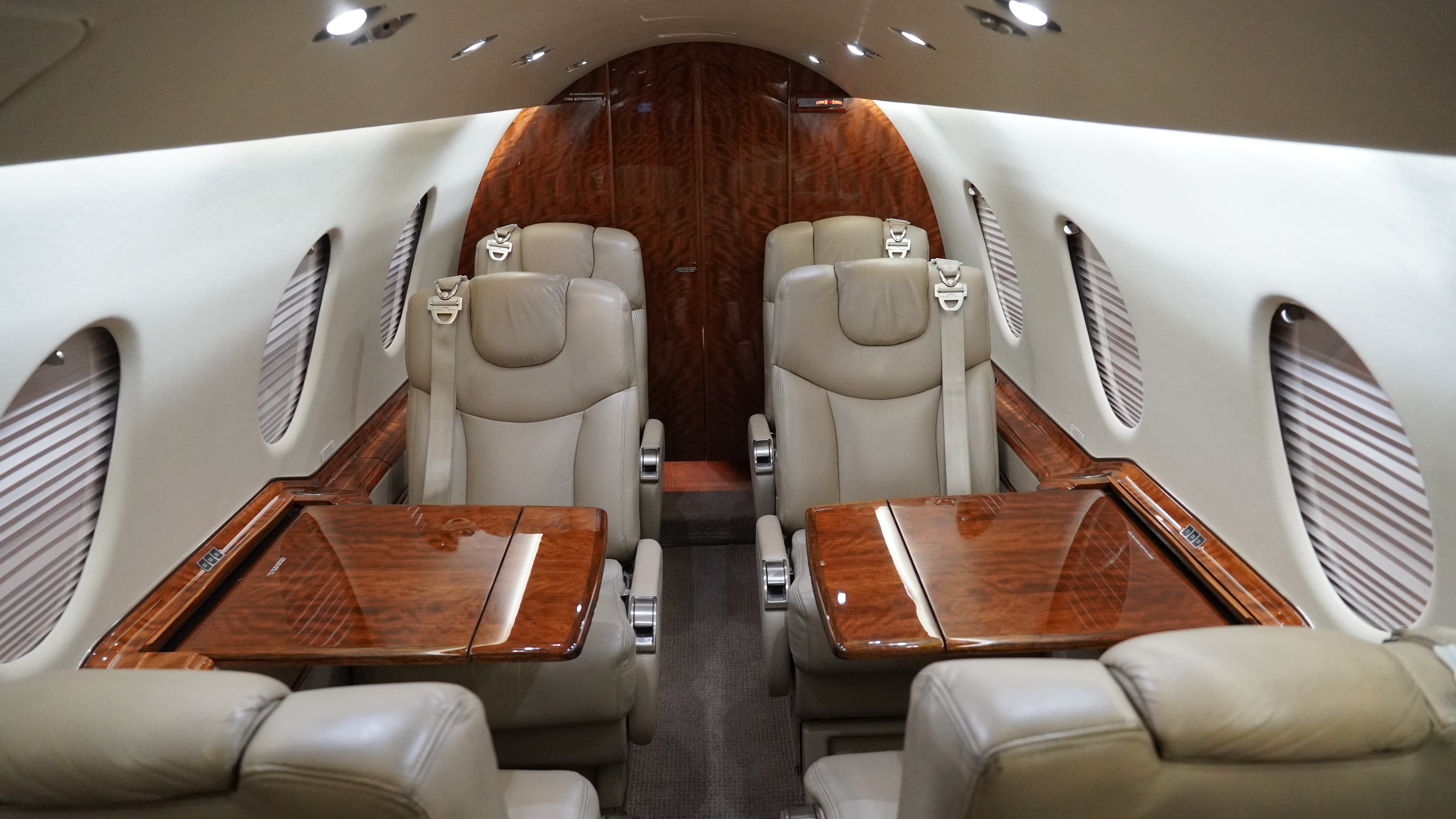

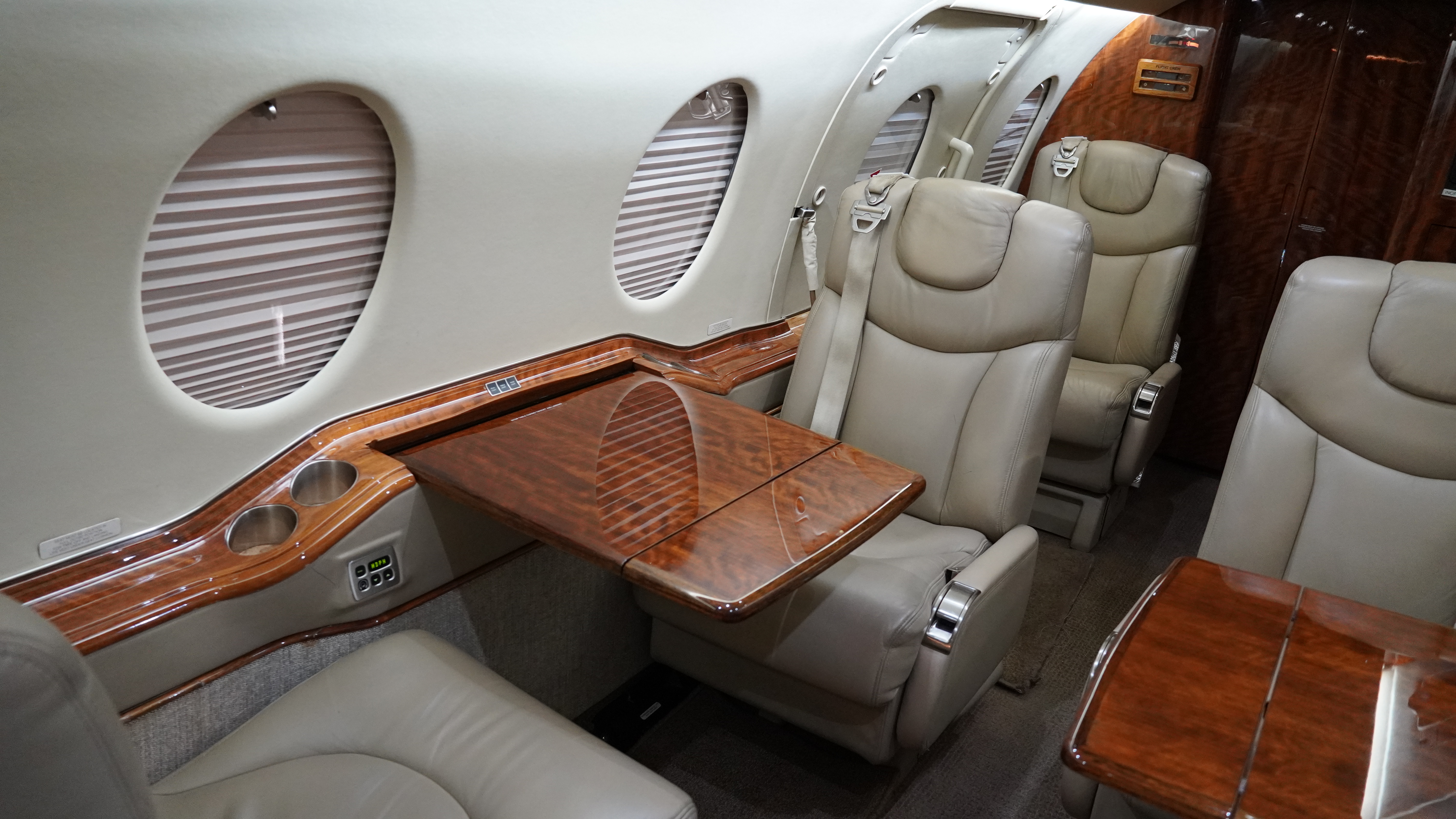

- Forward Cabin
- Single Aft-Facing Seat
- Mid Cabin
- Four (4) Place Club Configuration
- Aft Cabin
- Two (2) Forward-Facing Seats
- Baggage Capacity
- 47 cu. ft.
- Connectivity
- Avance L3 Broadband Internet
- Last Refurbished
2021
Engines
Engine 1
- Make and Model
- Pratt & Whitney JT15D-5R
- Serial Number
- *PCE-JG0135
- Engine Total Time Since New
- 10,624 hours
- Cycles Since New
- 8,222 cycles
Engine 2
- Make and Model
- Pratt & Whitney JT15D-5R
- Serial Number
- *PCE-JG0115
- Engine Total Time Since New
- 10,624.4 hours
- Cycles Since New
- 8,218 cycles
Explore the places you can go.
- Total Range
- 1,534 Nautical Miles
Hold your finger down on the map below. Pinch in/out to zoom the map to see the nonstop range available with the 2004 Hawker 400XP.
Click & Drag the cursor below to see the nonstop range available with the 2004 Hawker 400XP.
These maximum range examples are based on typical cruise speed assuming ISA conditions, 85% statistical annual winds, and standard fuel reserves. The intent is range purposes only, not for actual flight planning. Actual performance is subject to day of flight conditions.
Specs
Download Spec Sheet- Total Time Since New
- 7,076 hours
- Total Landings Since New
- 5,966 landings
- Certificate of Airworthiness Date
- July 2nd, 2004
- Home Base
- Elkhart Municipal Airport (KEKM)
- Maintenance Tracking
- CAMP
- Certification
- Part 135
- Current Tail Number
- N929AG
| Inspections | Last Performed | Next Due |
|---|---|---|
| IFA-A Inspection (12MOS/400 hours) | May 2024 | May 2025 or 22.5 hours |
| IFA-B Inspection (800 hours) | May 2024 | 422.5 hours |
| IFA-C Inspection (1600 hours) | Dec 2015 | 283.9 hours |
| IFA-D Inspection (6400 hours) | Feb. 2020 | 1,122.4 hours |
| Engine #1 Overhaul | Mar. 2024 | Due in 3,041.6 hours |
| Engine #2 Overhaul | Mar. 2024 | Due in 3,041.6 hours |
Enrolled on the IFA (Increased Flight Activity)

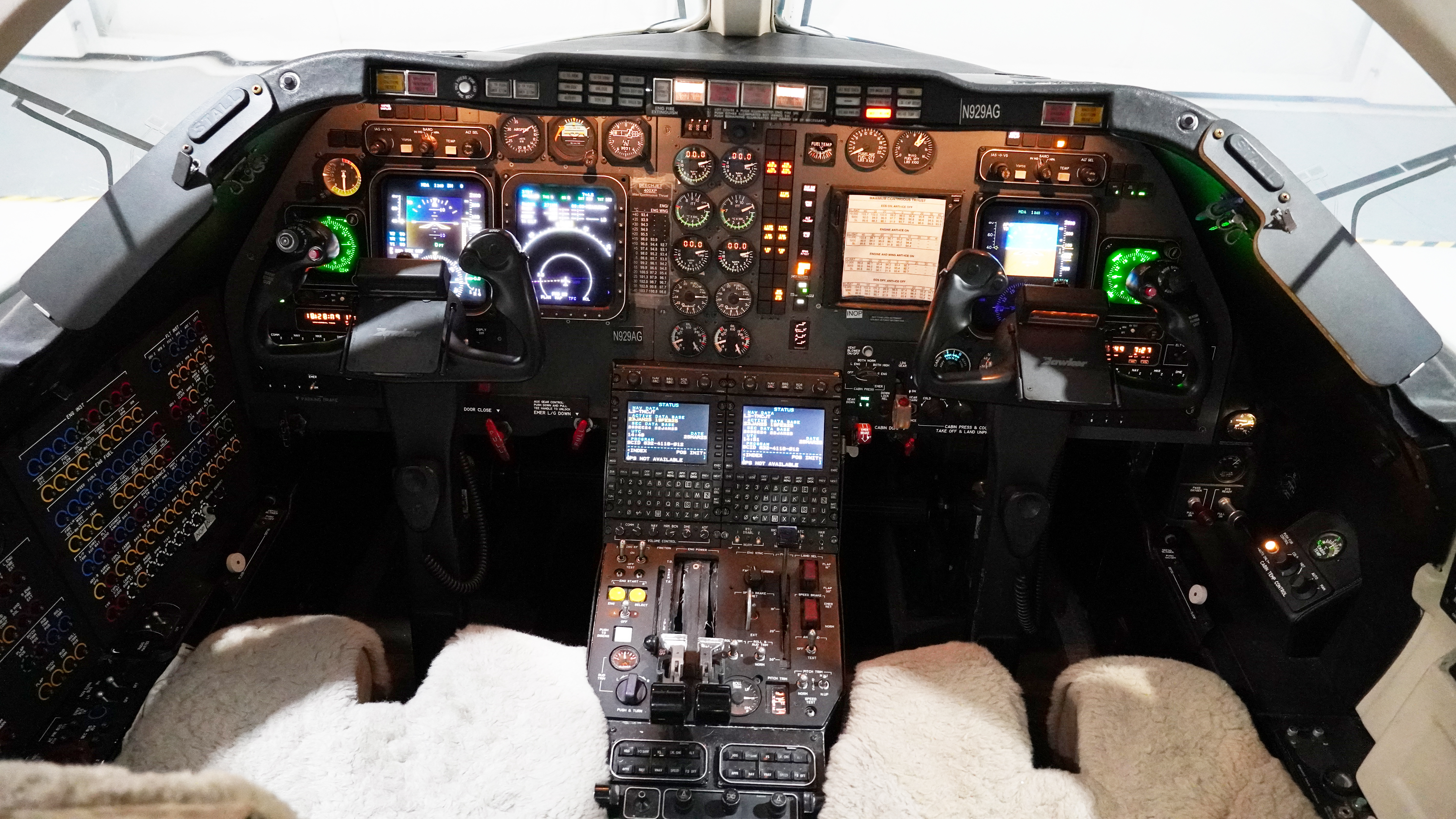

- System
- Collins Pro Line 4
| Type of Unit | Description |
|---|---|
| EFIS (Electronic Flight Instrument System) | Three Collins Displays |
| FMS (Flight Management System) | Dual Collins FMC-5000 |
| GPS (Global Positioning System) | GPS-4000A |
| DBU (Data Base Unit) | Collins DBU-5000 |
| ADC (Air Data Computer) | Dual Collins ADC-850D |
| NAV (Navigation Radio) | Dual Collins VIR-432 |
| DME (Distance Measuring Equipment) | Dual Collins DME-442 |
| VHF COM (Very High Freq. Communication) | Dual Collins VHF-422C w/ 8.33 spacing |
| RAD ALT (Radar Altimeter) | Collins ALT-1000 |
| XPNDR (Transponder) | Dual Garmin GTX-3000 |
| TCAS (Traffic Collision Avoidance System) | Collins TTR-4000 |
| CVR (Cockpit Voice Recorder) | L3Harris A100S |
| ELT (Emergency Locator Transmitter) | Artex C406-N |
