Key Features
- Less than 2,000 hours
- G3000 Prodigy Flight Deck
- Equipped w/ FDR
- CPDLC & Synthetic Vision System

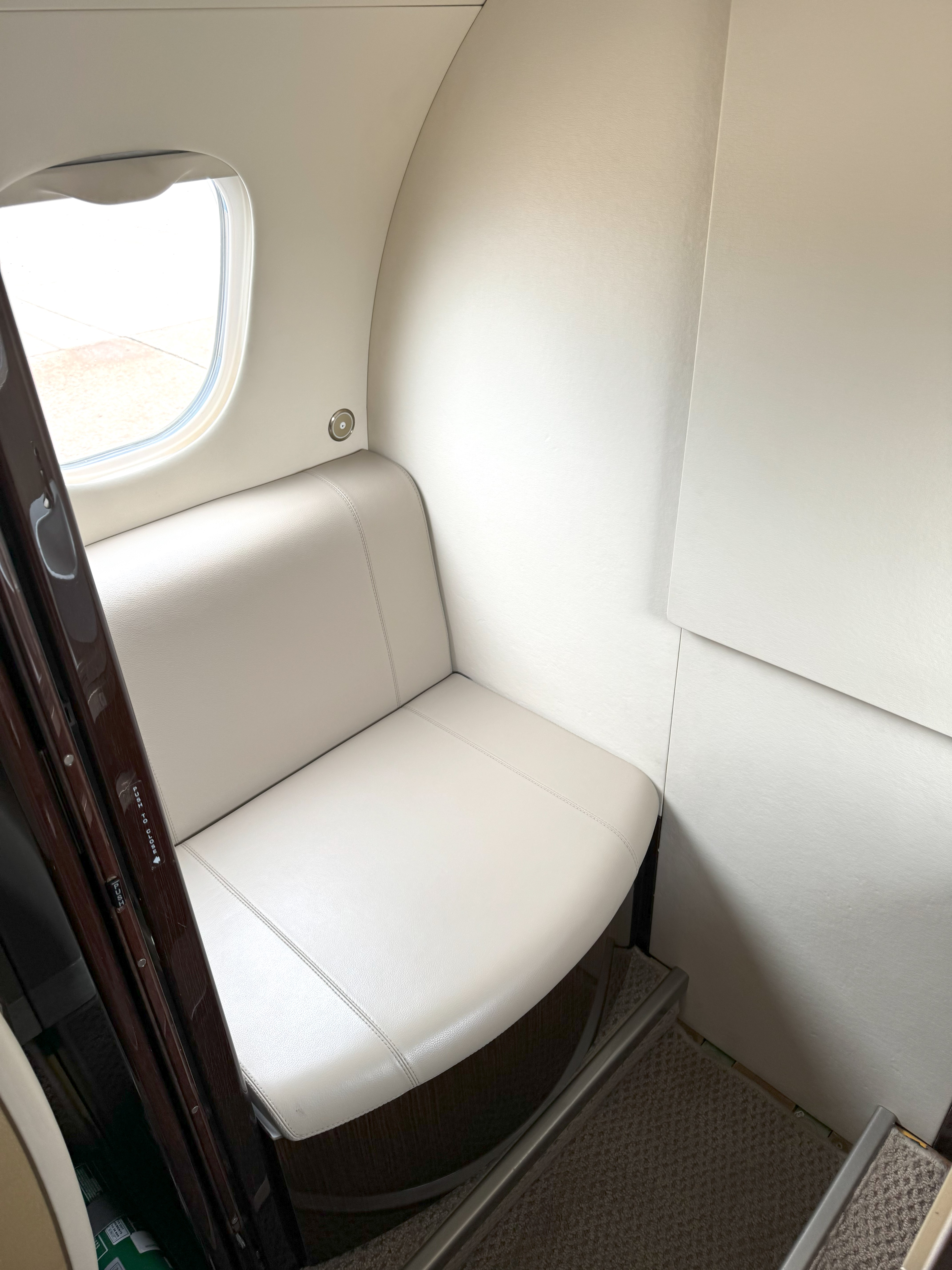

- 8 Passenger Configuration w/ Side Facing Divan

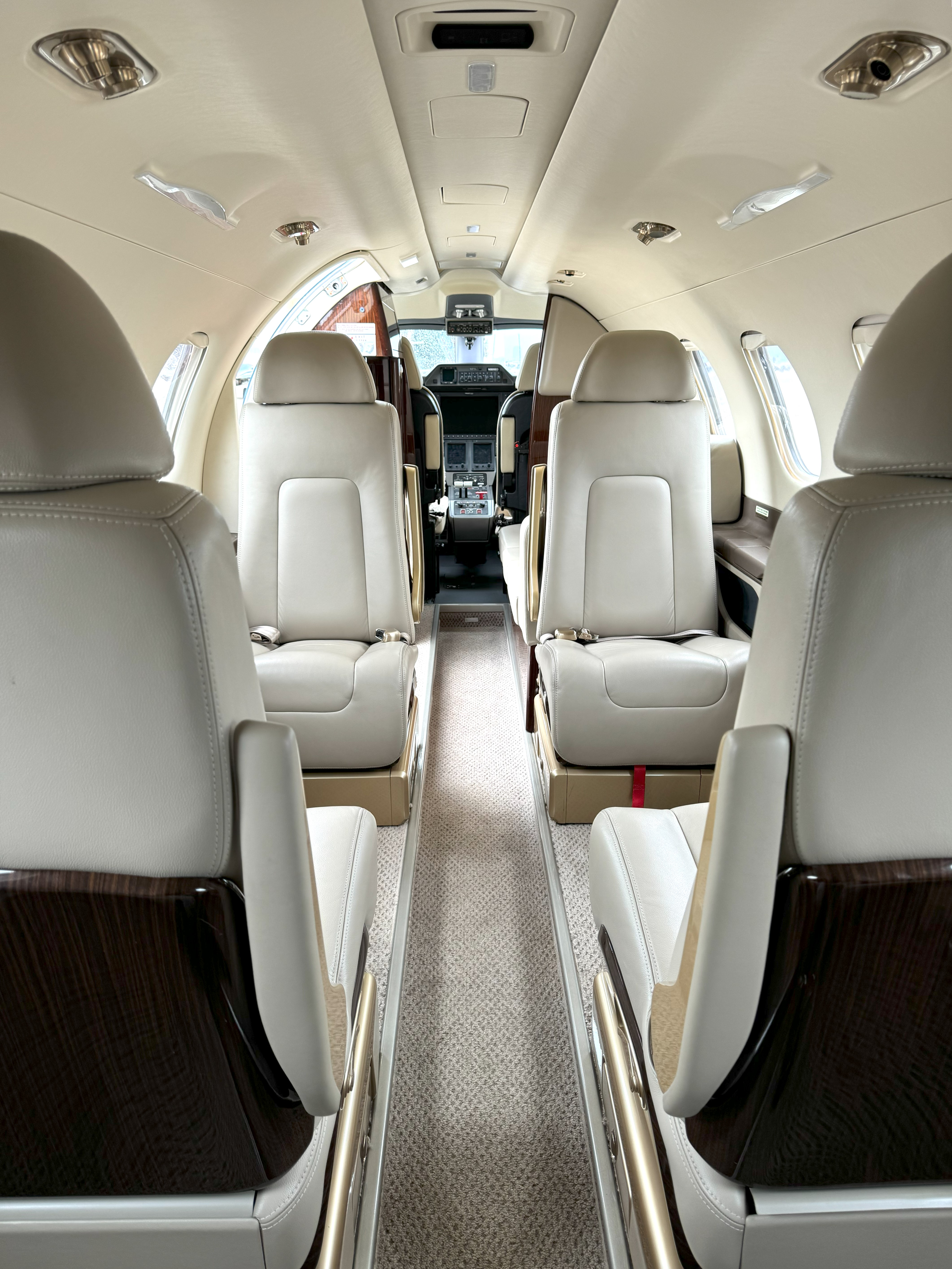

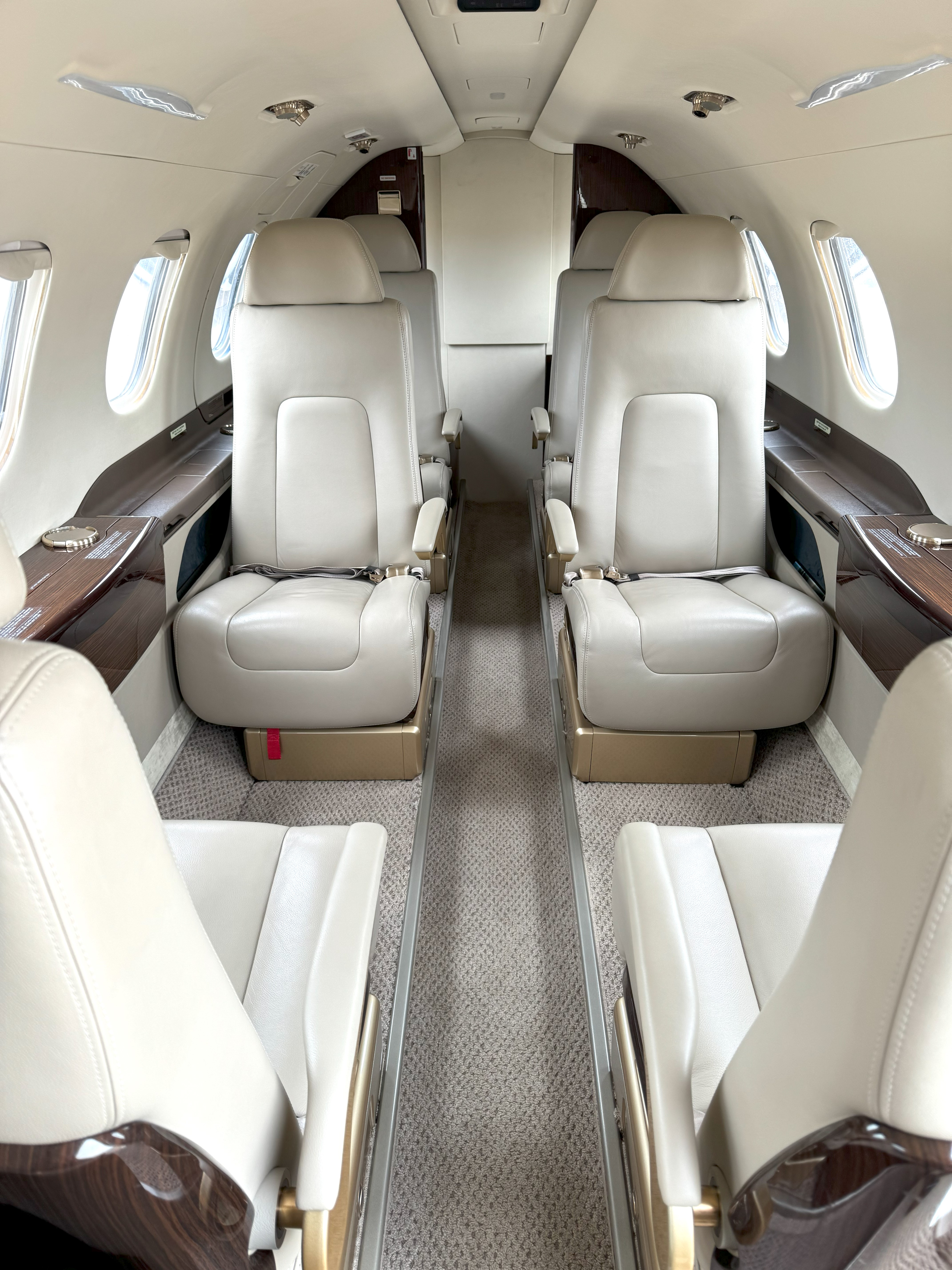

Cabin
- Cabin Length
- 17.17 ft
- Cabin Height
- 4.92 ft
- Cabin Width
- 5.08 ft
- Passengers
- 8
- Cabin Zones
- 1
- Lavatory Locations

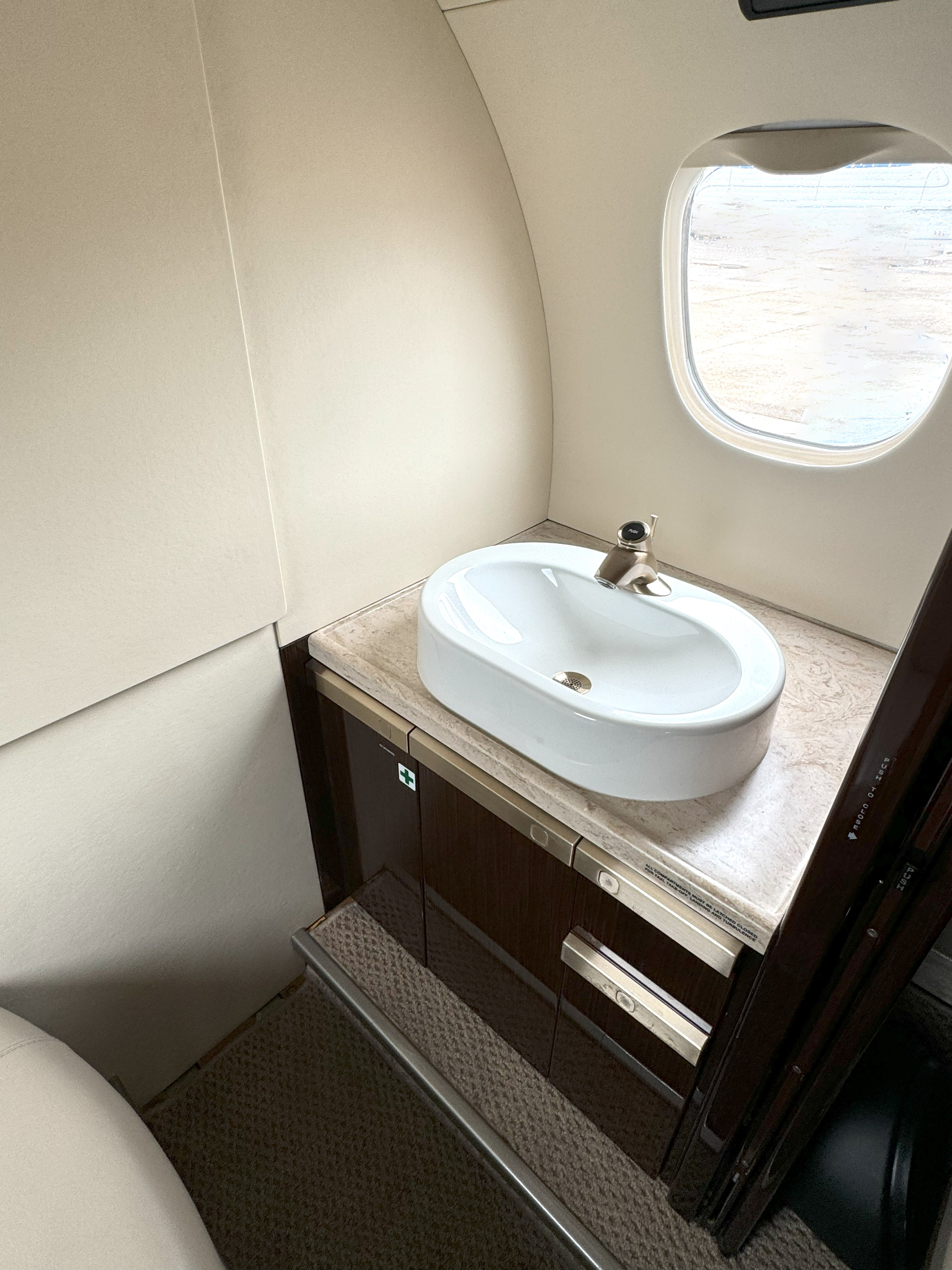

- Aft Enclosed Lavatory

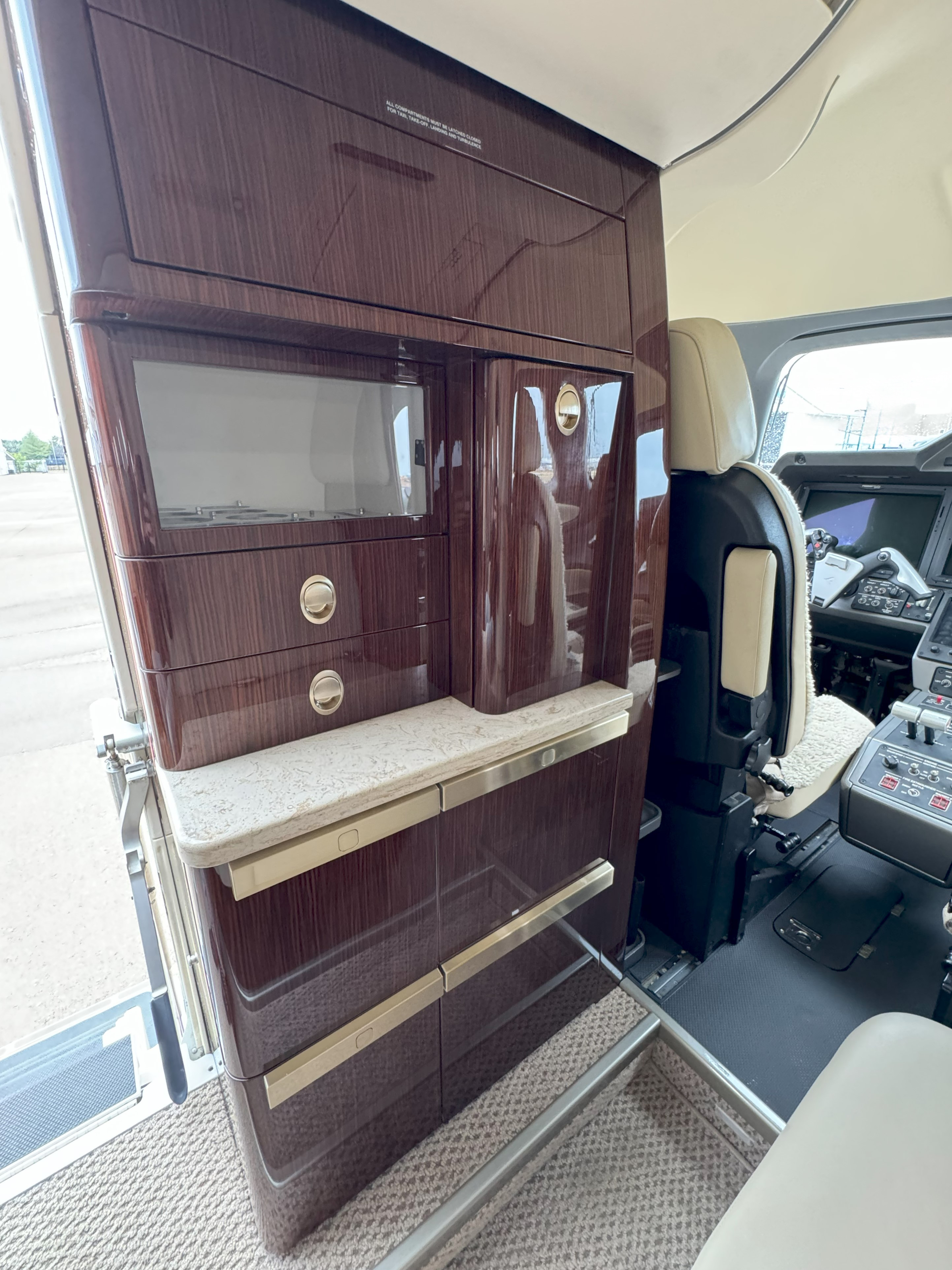

- Galley Location
- Forward Cabin
- Forward Cabin
- Two (2) Place Divan Followed by Four (4) Place Club
- Aft Cabin
- Two (2) Forward Facing Seats
- Baggage Capacity
- 85 cu ft
- Last Refurbished
2015
Engines
Engine 1
- Make and Model
- Pratt & Whitney Canada PW535E
- Engine Program
- ESP Gold
- Serial Number
- PCE-DG0613
- Engine Total Time Since New
- 1,846.2 hours
- Cycles Since New
- 1,275 cycles
Engine 2
- Make and Model
- Pratt & Whitney Canada PW535E
- Engine Program
- ESP Gold
- Serial Number
- PCE-DG0610
- Engine Total Time Since New
- 1,846.2 hours
- Cycles Since New
- 1,275 cycles
Explore the places you can go.
- Total Range
- 1,974 Nautical Miles
Hold your finger down on the map below. Pinch in/out to zoom the map to see the nonstop range available with the 2015 Phenom 300.
Click & Drag the cursor below to see the nonstop range available with the 2015 Phenom 300.
These maximum range examples are based on typical cruise speed assuming ISA conditions, 85% statistical annual winds, and standard fuel reserves. The intent is range purposes only, not for actual flight planning. Actual performance is subject to day of flight conditions.
Specs
Download Spec Sheet- Total Time Since New
- 1,846.2 hours
- Total Landings Since New
- 1,270 landings
- Certificate of Airworthiness Date
- December 22nd, 2015
- Home Base
- Dallas, Texas
- Maintenance Tracking
- CAMP
- Certification
- Part 91
- Current Tail Number
- N505BD
| Inspections | Last Performed | Next Due |
|---|---|---|
| 800 FH Inspection | Jan 2023 | 322.1 hrs |
| 36 Month Inspection | Jan 2022 | Dec 2024 |
| 48 Month Inspection | Jan 2024 | Dec 2027 |
| 60 Month Inspection | Dec 2020 | Dec 2025 |
| 120 Month Inspection | Not Completed | Dec 2025 |
| Landing Gear | Not Completed | Dec 2025 |
| Engine 1 Overhaul | Not Completed | Due in 3,153.8 hours |
| Engine 2 Overhaul | Not Completed | Due in 3,153.8 hours |
- System

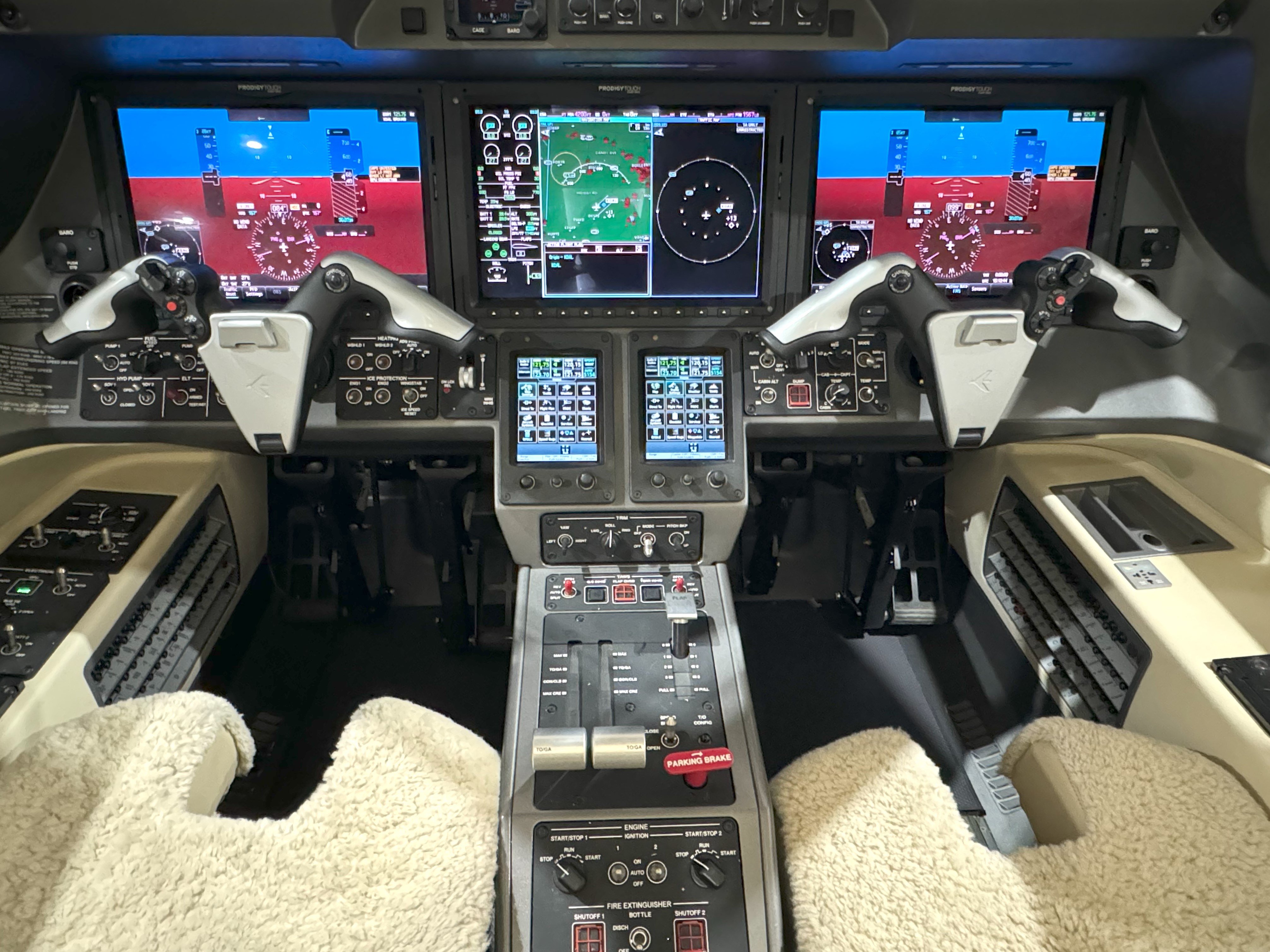

- Garmin G3000
| Type of Unit | Description |
|---|---|
| EFIS (Electronic Flight Instrument System) | Triple Garmin GDU-1400W |
| VHF COM (Very High Freq. Communication) | Garmin GDR-66 |
| NAV (Navigation Radio) | Dual Garmin GIA-63W |
| ADF (Automatic Direction Finder) | Collins ADF-462 |
| Satellite Radio Receiver | Garmin GDL-69A |
| DME (Distance Measuring Equipment) | BendixKing KN-63 |
| RAD ALT (Radio Altimeter) | BendixKing KRA-405B |
| XPNDR (Transponder) | Dual L3 Harris NXT-600 |
| TCAS (Traffic Collision Avoidance System) | ACSS TCASS 3000SP |
| CVR (Cockpit Voice Recorder) | L3 Harris FA5000 |
| FDR (Flight Data Recorder) | L3 Harris FA2100 |
| Weather Radar | Garmin GWX-70 |
| ELT (Emergency Locator Transmitter) | Kannad 406AF |
Inquire
Specifications are provided for informational purposes only and do not constitute representations or warranties. These specifications are subject to buyer’s independent verification upon inspection. The aircraft is subject to prior sale, lease, and/or removal from the market without prior notice.
